Caffeine

Test your friends chemistry knowledge. The world's most widely consumed legal and mostly unregulated psychoactive drug in the world.

For the “Chemistry LED selection” LEDs: Red is O, Yellow is H, White is C, Blue is N.

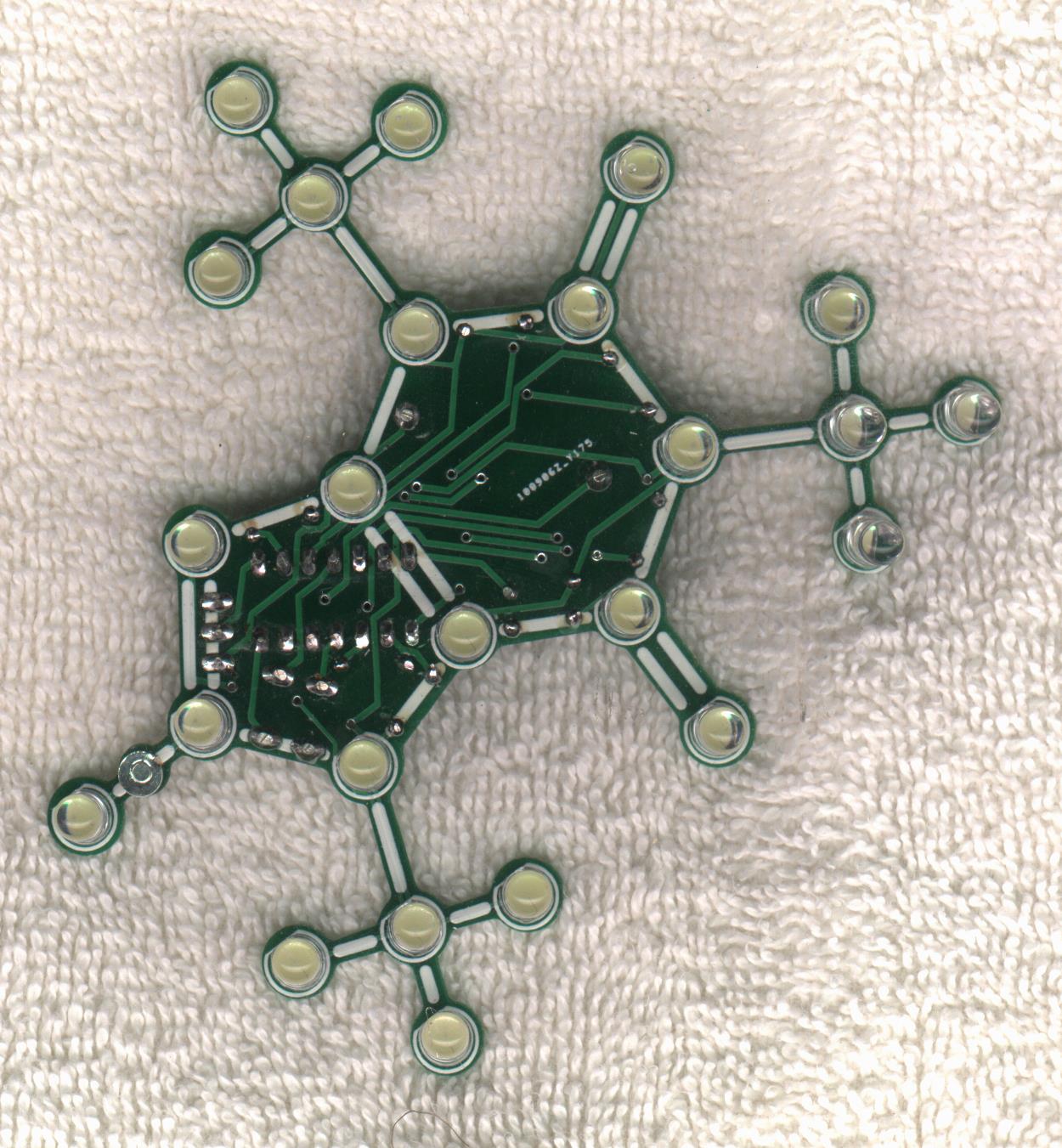

A 3.75” by 4“ circuit board creating the outline of the molecule so complicated that one of our circuit board manufactory houses did not even on to bid on it.

This blinkie design was introduced in 2016 at Musecon 6

• Twentythree 5mm LEDs
• Multiple patterns
• Two Pattern selection buttons
• Uses a PIC 16F18324.

Resources

• Assembly Instructions [doc] [pdf]
• tbd The Source Code
• tbd The Complier Listing
• tbd The Hex File
• PIC 16F18324 Data Sheet
• Schematic

  Bigger Pictures


• front
• back
