Star

Be your very own wild west character with this gold five-pointed 5 LED Sheriff Star. This blinkie badge has special silver artwork done by MSkirvin.

The Star is a 4.3” by 4.3” double-sided circuit board with a pin-back so you can wear your sheriff star on your leather vest (or other clothing). It can be built with various LEDs (single, bi-color, or square RGB), and will display various user-selectable patterns.

Star

• 5 RGB LEDs or 5MM LEDs
• Multiple patterns
• Pattern selection button
• Designed to use the 12F1822 PIC.

Resources

• Assembly Instructions [doc] [pdf]
• The Source Code
  • Mono
    • The Complier Listing
    • The Hex File
  • RGB
    • The Complier Listing
    • The Hex File
• PIC 12F1822 Data Sheet
• Schematic TBD

Bigger Pictures

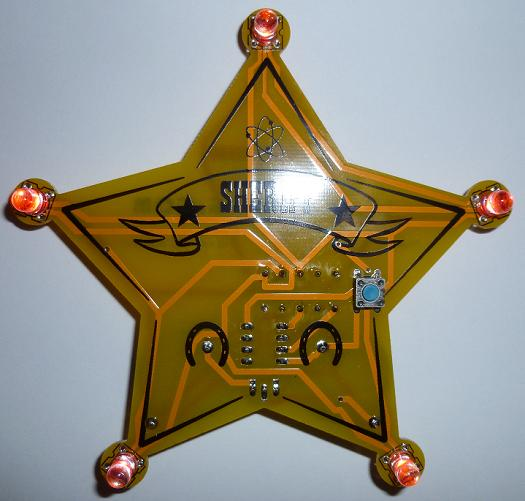

• front
