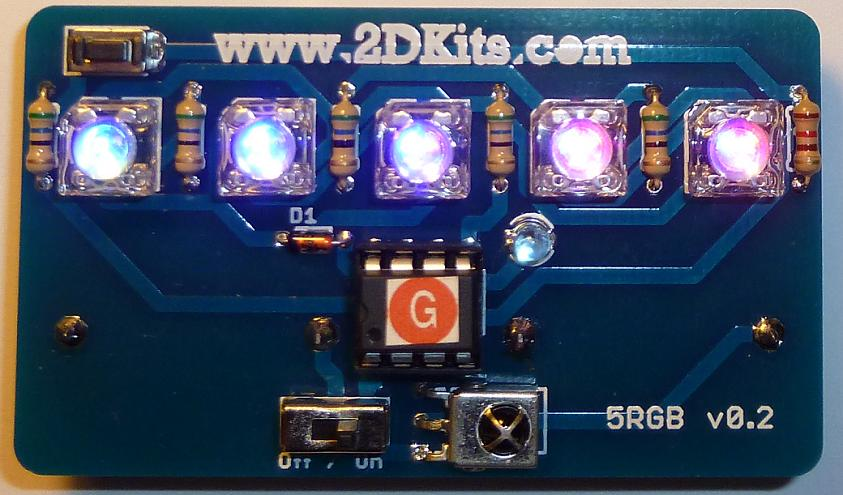

The 5 RGB is a 1.5†by 2.6†double-sided circuit board with a pin-back for wearing, which will display various user-selectable patterns.
Originally, this design had 4 RGB LEDs. It was so successful, we ran through the original set of boards. We took the opportunity to make some improvements, resulting in the new and superior 5 RGB Blinkie. Some of the improvements:
- New battery solution, using the longer-life CR2032 batteries.
- An additional LED.
- Made the circuit traces a little wider.
- Curved corners.
- Blue circuit board

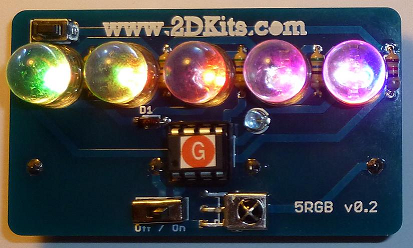

- Solved the round-peg-in-a-square-hole problem. A clever bit of engineering allows either square RGB LEDs *or* round 10mm RGB LEDs to be used.
5 RGB Blinkie Kit
- Uses RGB Square LEDs or 10MM RGB LEDs
- IR transmitter
- IR receiver
- Multiple patterns
- Pattern select button
- The Design uses PIC 12F1822
