Gator G2

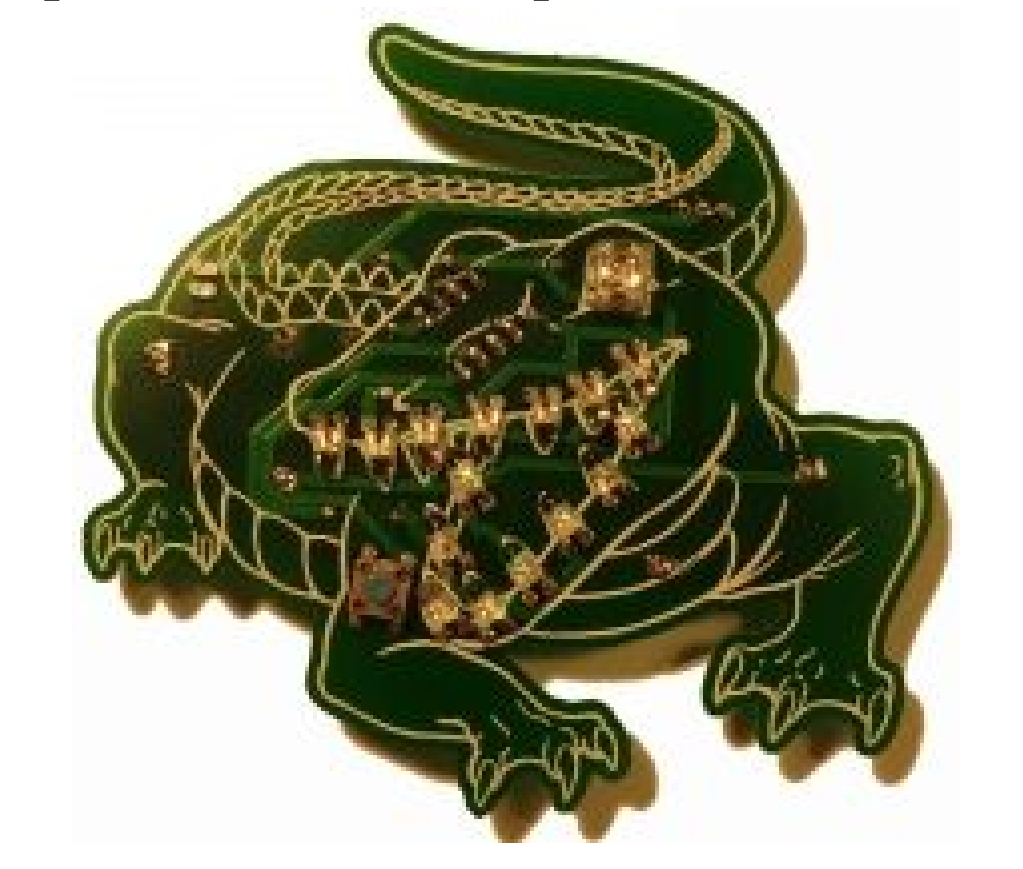

This is the 2019 redesign of the original Gator. It still has 15 LEDs for the teeth, and a RGB LED for the Eye.

It's a 3.88" by 3.67" double-sided circuit board in the shape of an gator with 15 mono LEDs for the teeth, and a RGB LED for the Eye.

We worked with artist MSkivin who created the gator design for us.

• 1 RGB LEDs
• 15 LEDs for the teeth
• Multiple patterns
• Pattern selection button
• Designed to use PIC 16F18313.
• Uses two CR2032 Batteries

Resources

• Assembly Instructions
• The Source Code
• The Complier Listing
• The Hex File
• PIC 16F18313 Data Sheet
• Schematic
