19 LED Circle Blinkie Kit

It's a 1.8" by 2.6" double-sided circuit board with a mounting pin on the back side that requires assembly and soldering. It has 19 single or bi-color LEDs that will display various user-selectable patterns and text messages. There is an IR emitter and receiver for two way communication to other blinkie boards. This blinkie design was introduced in 2005 at Duckon 14

Some beginners (and some experts) have had trouble soldering the four battery holders and the mounting pin to the board. The circuit boards come with these components already soldered on.

In 2007, an updated version of the software was released, adding support for single color LEDs.

19 Circle LED Blinkie Kit

• 19 single or bi-color LEDs
• IR transmitter
• IR receiver
• Multiple patterns
• Pattern selection button
• Designed to use PIC 16F688.

Resources

• Assembly Instructions [MS Word] [PDF]
• The Source Code (2007 version)
• The Complier Listing (Mono Color)
• The Complier Listing (Bi Color)
• The Hex File (Mono Color)
• The Hex File (Bi Color)
• Excel Pattern Maker/Book
• PIC 16F688 Data Sheet
• Schematic
• IR RC-5 Protocol/a>

Old Resources

• Assembly Instructions[MS Word] [PDF]
• The Source Code(2005 version)
• The Compiler Listing
• The Hex File

Bigger Pictures

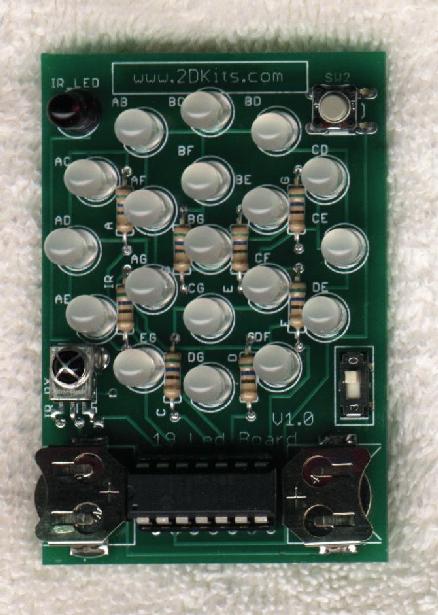

Front

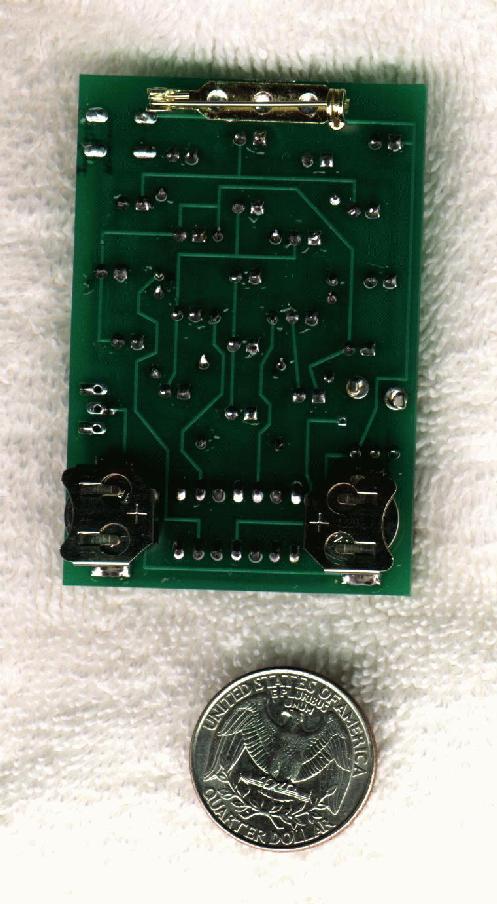

Back
